The AquaProbe is designed for installation in existing pipelines by means of a small valved tapping. It is normally installed with the sensing head on the pipe centre line, but may be located at the critical position (the mean velocity position) a distance of 1/8 of the diameter away from the wall.

It provides an accurate local measurement of the water velocity and, provided the flow profile is fully developed, a good flow volume measurement. If the profile is not fully developed a traverse of the pipe can be carried out which will enable an accurate flow volume measurement to be obtained in non-ideal networks.

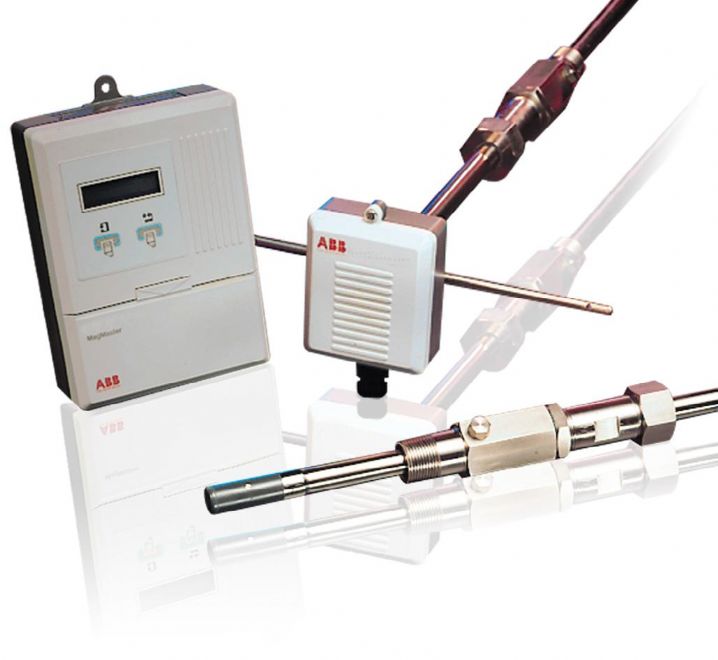

The AquaProbe is supplied as standard with the MagMaster transmitter which, being a high precision device, gives excellent performance, whether in temporary or permanent installations, in profiling or pipelines. It offers a wide range of options on terms of output, diagnostics, communications and user facilities.

Fully submersible, rugged and robust sensor - reliable, maintenance-free operation in arduous environments
’Hot tap’ capability - enables installation with no interruption to normal water supply
Good accuracy over wide operating flow range in both forward and reverse flow directions - enables user to accurately measure peak daytime flows and minimal night flows
Price virtually independent of pipe diameter - low cost alternative to full bore meters
Suitable for permanent or temporary installation - total user flexibility
No moving components and hence no bearing wear problems - stable calibration and reliable operation
Choice of transmitter
