Solenvis SL87 Quad input temp logger

Let us help you

For more information about this product, please complete the form below and we will call you back.

Or Call us on:

01189 342607

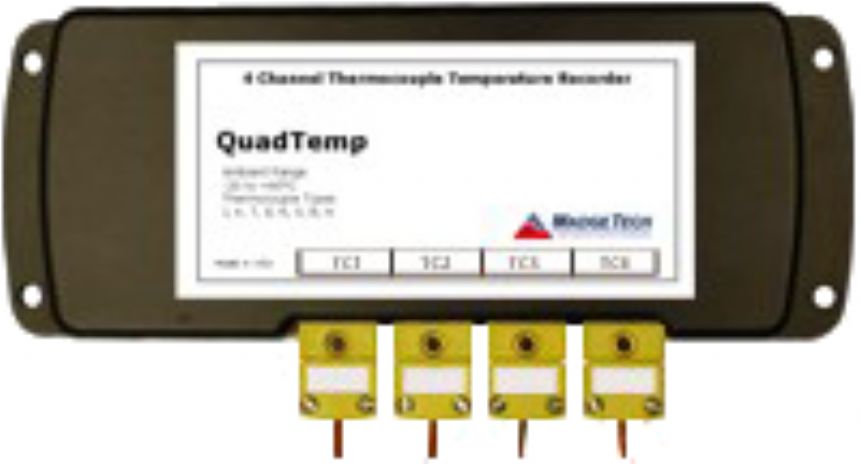

The QuadTemp is a four channel thermocouple data logger with a reading rate of up to 4Hz. It can measure and record 500,000 readings per channel. To maximize memory capacity, users can enable or disable channels. For easy identification, each channel can be named with up to a ten digit title.

In addition, the QuadTemp features individual cold junction compensation for each channel providing increased accuracy and response time, and if a probe is removed or severed during logging, the software automatically annotates the data.

The QuadTemp is ideal for a variety of applications, whether it is remote temperature monitoring, or multiple points in a central location. Data from all channels is simultaneously logged. After the monitoring cycle is complete, data can be downloaded for analysis.

Features

• 4Hz reading rate
• 500,000 readings per channel
• Open channel detection
• Title channels
• Accepts thermocouple types - J, K, T, E, R, S, B, N
• External power or user replaceable battery
• Pushbutton or programmable start

Applications

• Warehouse monitoring
• Refrigerator monitoring
• Medical and Pharmaceutical
• Oven monitoring
• Smoke houses
• Food Processing
• HVAC
• Engine Studies
