Solenvis SL76 Batch Controller

Let us help you

For more information about this product, please complete the form below and we will call you back.
Or Call us on:

01189 342607

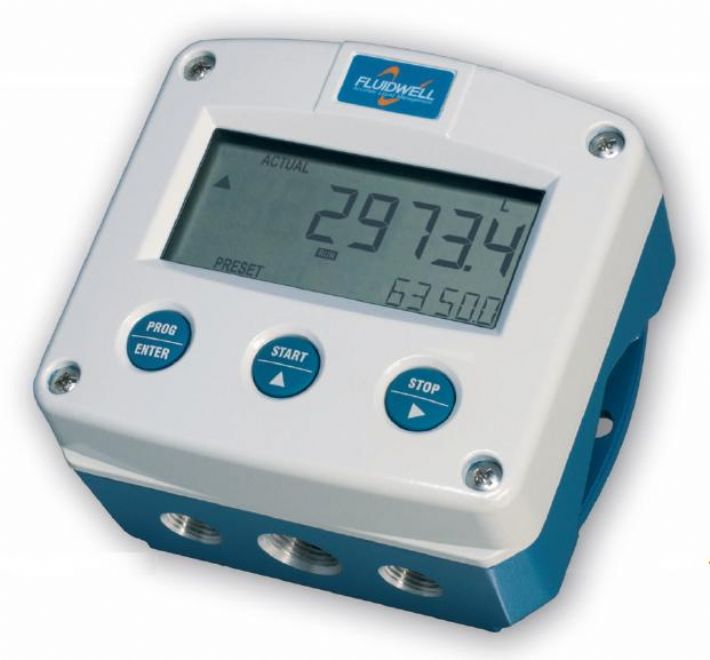

The F030 is a straight forward but easy-to-use batch controller. The operator can easily enter a batch quantity or execute repeating batches. During the batch, the preset value is displayed as well as the batched or remaining quantity. The automatic self-learning overrun correction will ensure an accurate batch every time. On-screen engineering units are easily configured from a comprehensive selection. A wide range of options further enhance this models capability, including Intrinsic Safety for hazardous area applications.

Applications

For batching small up to very large quantities. Single or repeating batches.

Features

Large display shows preset value and running batch value simultaneously.
Self-learning overrun correction.
Easy operation to enter a batch value and to control the process.
Count-up and count-down function available.
Selectable on-screen engineering units; volumetric or mass.
Ability to process all types of flowmeter signals.
Operational temperature -40°C up to +80°C (-40°F up to 178°F).
Rugged aluminum field mount enclosure IP67/NEMA 4X.
Intrinsically Safe - ATEX, IECEx, FM and CSA approval for gas and dust applications.
Explosion/flame proof II 2 GD EEx d IIB T5.
LED backlight option.
Loop or battery powered, 8 - 24V AC/DC or 115 - 230V AC power supply.
Sensor supply 3.2 / 8.2 / 12 / 24V DC.
