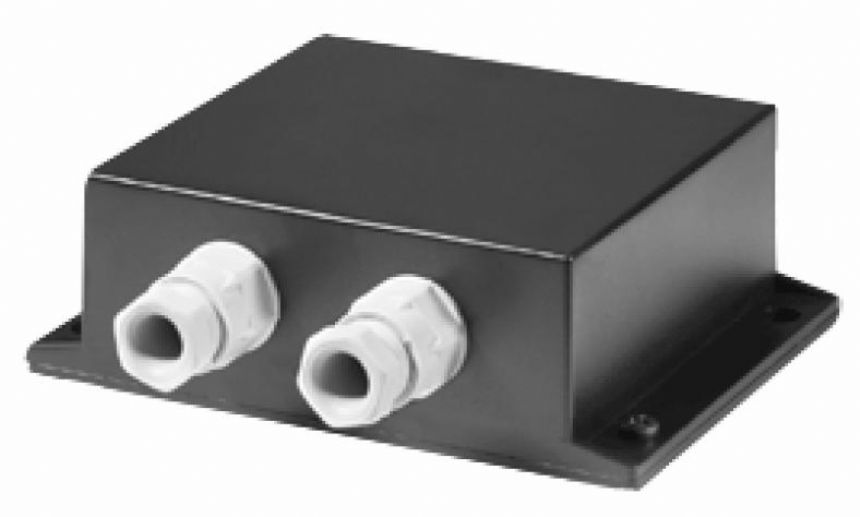

Solenvis SL269 Pulse MBUS module

Let us help you

For more information about this product, please complete the form below and we will call you back.

Or Call us on:

01189 342607

The Solenvis SL269 series of devices connects meters with contact output to the M-Bus system. This is a simple and flexible solution for reading already installed gas, electricity, heat, water and steam meters.

The power for the impulse adaptor is taken from the M-Bus. An integrated battery maintains the count function in case of a bus voltage failure. The capacity of the battery allows operation without M-Bus connection for guaranteed 7 years.

During installation the Solenvis SL269 modules can easily be adapted to the pulse output of the meter using MBCONF configuration software. The measured medium, the pulse value, the pulse unit and the initial meter count are nearly free adjustable to the individual meter by setup software. An integrated security feature prevents data configuration after installation without opening the sealed housing.

Features

• Pulse Output to M-Bus Conversion
• Suitable for Electricity, Gas, Water and Heat Meters
• Powered from the M-Bus (EN1434-3 Standard)
• Battery Back-Up Guaranteed for 7 Years
• Floating Contact and S0 Contact Versions Available

• Datasheet
