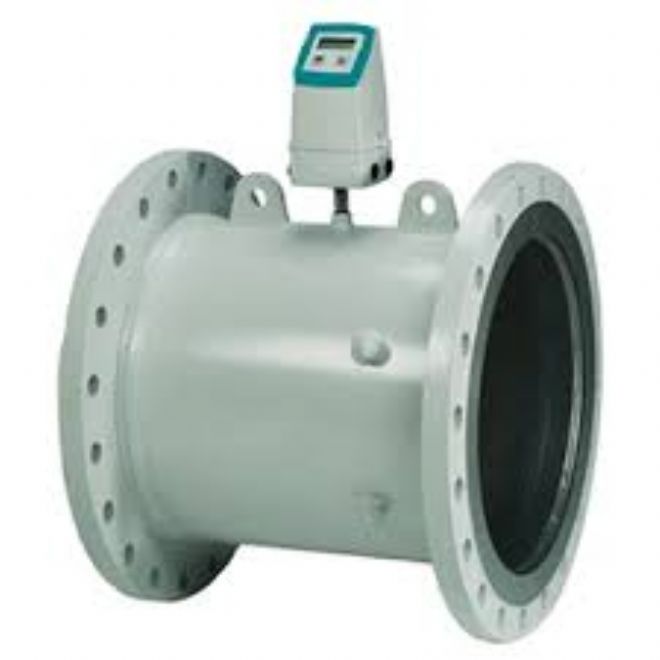

Solenvis SL166 Siemens Sitrans FUE380 magmeter

For more information about this product, please complete the form below and we will call you back.
Or Call us on:

Product Description

A versatile meter for the measurement of water flow or water flow in heat meter systems as seen in custody transfer applications and district heating systems.
Combined with the Solenvis SL166 Siemens FUE950 energy calculator this forms a reliable heatmeter system
Approved to heat meter standards EN 1434 class 2, OIML R75 class 2 and MID class 2
Battery powered up to 6 years
115/230 V mains powered with back-up battery option in case of mains power failure
Fast measuring frequency 20 Hz/0.5 Hz (230 V AC/Battery)
Easy one button straight forward display2-track measuring principle for optimum accuracy
Compact or remote mounting
Measures on all district water qualities and water conductivities
No pressure drop
Long-term stability
2 galvanic isolated digital outputs for easy connection to a calculator (potential free)
Bidirectional measurement, with 2 totalizers and outputs
Dynamic range Qi:Qp up to 1:50/100 or max. range Qi:Qs up to 1:400
MODBUS RTU/RS 232, RS 485
Pipe sizes DN50 - DN1200 (2” to 48”)
